Bilgisayar sistemlerinde elektronik kontrol ve regulasyon donanımlarında, ofis makinaları ve ölçü cihazlarında, ses frekansı sinyalleri iletiminde, özellikle küçük boyutlu kablolara ihtiyaç duyulan her yerde kullanılır. Yangın riski olan alanlarda ve yangının yayılmasını önlemek için kullanılır.
Conductor : Multi wire copper conductor (Class5)
Insulation : Insulation Silicon rubber.
Color Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Separator : Glass foil wrap.
Outer sheath : Gri LSOH Outer sheath, (HM2)
It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machine and measurement devices, audio transmission lines. It is used in areas which is under risk of fire and to reduce the spreading of a fire. It supports precise transmission by external electric effects reflecting screen.
Conductor : Multi wire copper conductor (Class5)
Insulation : Insulation Silicon rubber
Color Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Separator : Glass foil wrap.
Ekran : Al/PET foil %100 coverage
Outer sheath : Grey LSOH sheath. (HM2)
It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machine and measurement devices, audio transmission lines. It is used in areas which is under risk of fire and to reduce the spreading of a fire. It supports precise transmission by external electric effects reflecting screen.
Conductor : Multi wire copper conductor (Class5)
Insulation : Insulation Silicon rubber.
Color Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Seperator : Glass foil wrap.
1. Screen : Al/PET foil %100 coverage
2. Screen : Tinned copper braid shield
Outer sheath : Grey LSOH sheath. (HM2)
It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machine and measurement devices, audio transmission lines. It is used in areas which is under risk of fire and to reduce the spreading of a fire. It supports precise transmission by external electric effects reflecting screen.
Conductor : Multi wire copper conductor (Class5)
Insulation : Insulation Silicon rubber
Color Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Seperator : Glass foil wrap.
Screen : Tinned copper braid shield.
Outer sheath : Grey LSOH sheath. (HM2)

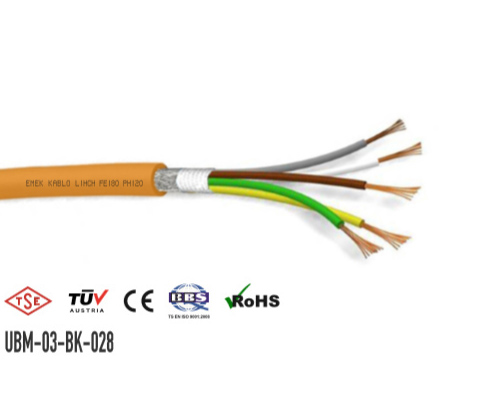

To be used as installation cable with insulating integrity for at least 180 minutes for industrial electronics for permanent installation in areas where there is risk of fire.
Conductor : Solid copper conductor.
Insulation : Fire resistant, Silicone rubber.
Color Code : Colour codes according to DIN VDE 0815.
Seperator: Fiber Glass Tape.
Drain Wire : Tinned copper drain wire
Screen : Plastic laminated aluminum foil shield.
Outer sheath : Red(RAL 3000) or Orange(RAL 2003) LS0H sheath. (HM2)
