Elektronik Kontrol Kabloları

ELECTRONIC CONTROL CABLES

APPLICATION

Used in control and signal lines systems, electronic control and regulation gears, and office machine and measurement devices.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation PVC. (YI1)
Colour Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Separator : Plastic foil wrap
Sheath : Grey PVC sheath. (YM2)

BROCHURE

TSE CERTIFICATE

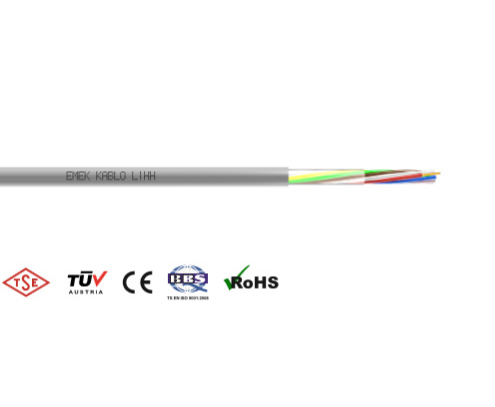

APPLICATION

Used in control and signal lines systems, electronic control and regulation gears, and office machine and measurement devices. It is used in areas which is under risk of fire and to reduce the spreading of a fire.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation LSOH. (HI2)
Colour Code : Colour codes according to DIN 47100
Stranding : Cores twisted in layers
Separator : Plastic foil wrap
Sheath : Grey LSOH sheath. (HM2)

BROCHURE

TSE CERTIFICATE

APPLICATION

Used in control and signal lines systems, electronic control and regulation gears, and office machine and measurement devices.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation PVC. (YI1)
Colour Code : Colour codes according to DIN 47100
Stranding : Cores twisted in layers
Separator : Plastic laminated aluminium foil shield.
Shield : Plastic laminated aluminium foil shield.
Sheath : Grey PVC sheath. (YM2)

BROCHURE

TSE CERTIFICATE

APPLICATION

Used in control and signal lines systems, electronic control and regulation gears, and office machine and measurement devices.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation LSOH. (HI2)
Colour Code : Colour codes according to DIN 47100
Stranding : Cores twisted in layers
Separator : Polyester foil laminated aluminium foil shield.
Shield : Plastic laminated aluminium foil shield+Tinned copper wire
Sheath : Grey LSOH sheath. (HM2)

BROCHURE

TSE CERTIFICATE

APPLICATION

It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machine and measurement devices, audio transmission lines. It supports precise transmission by external electric effects reflecting screen.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation PVC. (YI1)
Colour Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Separator : Plastic foil wrap.
Shield : Tinned copper braid shield.
Sheath : Grey PVC sheath. (YM2)

BROCHURE

TSE CERTIFICATE

APPLICATION

It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machine and measurement devices, audio transmission lines. It is used in areas which is under risk of fire and to reduce the spreading of a fire. It supports precise transmission by external electric effects reflecting screen.

CONSTRUCTION

Conductor : Multi wire copper conductor (Class 5)
Insulation : Insulation LSOH. (HI2)
Colour Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers.
Separator : Plastic foil wrap
Shield : Tinned copper braid shield
Sheath : Grey LSOH sheath. (HM2)

BROCHURE

DOP

TSE CERTIFICATE

APPLICATION

It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machines and measurement devices, audio transmission lines. It supports sensitive transmission by external electric effects reflecting screen. (For EIA RS-232 and CAD/CAM applications.)

CONSTRUCTION

Conductor : Multi wire tinned copper conductor (Class 5)
Insulation : Yarı-sert PVC damar izolasyonu
Colour Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers
Separator : Plastic laminated aluminium foil shield.
Shield : Tinned copper braid shield.
Sheath : Grey PVC sheath

BROCHURE

TSE CERTIFICATE

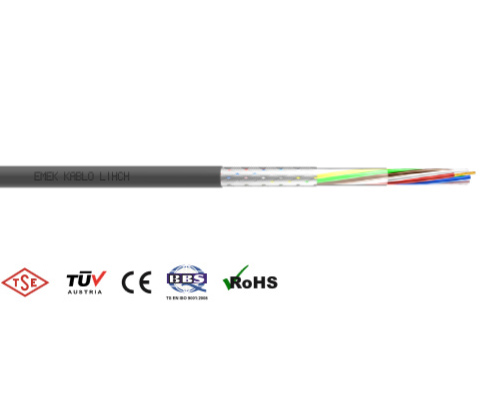

APPLICATION

It is used in anywhere that particularly requires shielded cable such as computer system, electronic control and regulation gears, office machines and measurement devices, audio transmission lines. It supports sensitive transmission by external electric effects reflecting screen. (For EIA RS-232 and CAD/CAM applications.)

CONSTRUCTION

Conductor : Multi wire tinned copper conductor (Class 5)
Insulation : Insulation LSOH. (HI2)
Colour Code : Colour codes according to DIN 47100.
Stranding : Cores twisted in layers
Separator : Plastic laminated aluminium foil shield
Shield : Tinned copper braid shield
Sheath : Grey LSOH sheath (HI2)

BROCHURE

TSE CERTIFICATE
